Providers Profiles

Setting Up Cloud Providers

A provider is identified by its platform name and region and primary zone. To integrate a provider, you need to create a ProviderProfile resource in skycluster-system namespace. The following examples show how to configure the a ProfileProvider for the major cloud providers: AWS, GCP, and Azure.

AWSGCPAzure

apiVersion: core.skycluster.io/v1alpha1
kind: ProviderProfile
metadata:
  name: aws-us-east-1
  namespace: skycluster-system
spec:
  platform: aws # Platform can be aws, azure, gcp
  region: us-east-1  # Region identifier
  regionAlias: us-east
  continent: north-america
  enabled: true
  zones:
    - name: us-east-1a   # Zone identifier
      locationName: us-east-1a
      defaultZone: true # Only one zone can be default
      enabled: true
      type: cloud  # Optional
    - name: us-east-1b    # Zone identifier
      locationName: us-east-1b
      defaultZone: false
      enabled: true
      type: cloud  # Optional

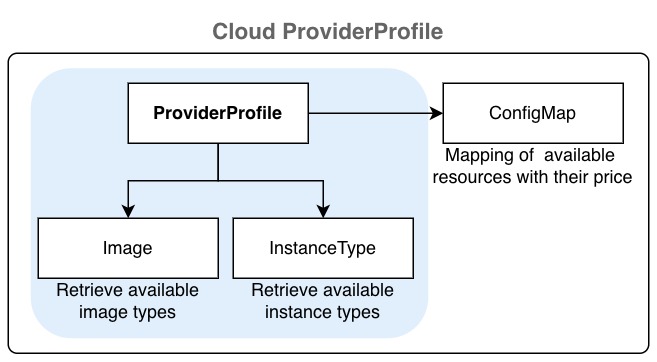

SkyCluster automatically detects available images and instance types for major cloud providers such as AWS, Azure, and GCP. For OpenStack and baremetal, these services must be configured manually

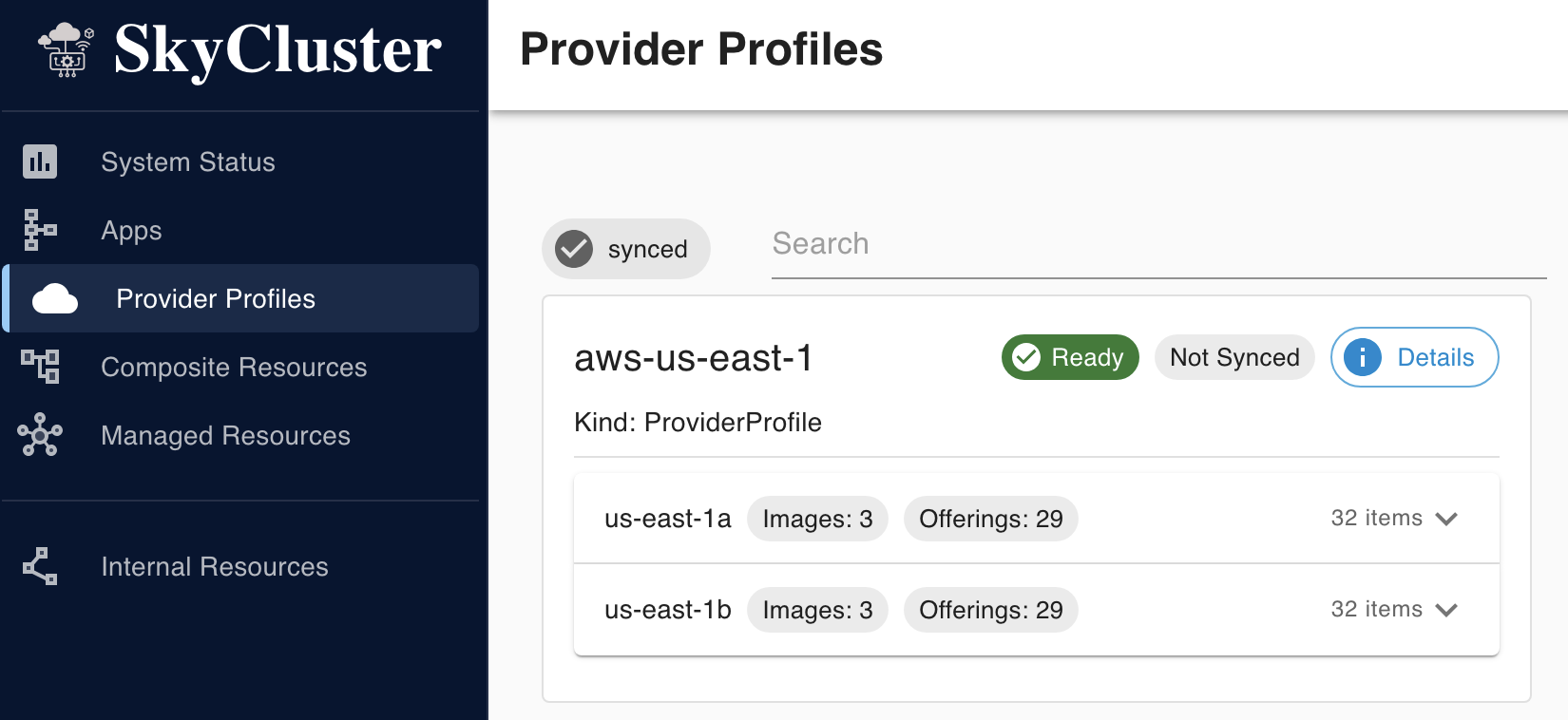

After creating a ProfileProvider resource, the SkyCluster operator generates a ConfigMap in the skycluster-system namespace containing the available images and instance types for that provider. Verify that the provider profile is ready by checking its status:

kubectl get providerprofile -n skycluster-system
# NAME            REGION      READY
# aws-us-east-1   us-east-1   Ready

Setting Up On-premises Providers

OpenStack

Similar to cloud provider, a edge or private provider is identified by its platform name and region and primary zone. In addition to ProfileProvider resource, you also need to create dependency resources to for the provider. The following example shows how to configure the OpenStack provider for the on-premises savi edge cluster with scinet region with primary zone default.

Provider Profiles

apiVersion: core.skycluster.io/v1alpha1
kind: ProviderProfile
metadata:
  name: savi-scinet-default
  namespace: skycluster-system
spec:
  platform: openstack
  region: scinet
  regionAlias: scinet # Optional
  continent: north-america # Optional
  enabled: true
  zones:
    - name: default
      locationName: default # Optional
      defaultZone: true
      enabled: true
      type: edge

Note

ProviderProfile status becomes Ready when the dependency resources are created for the provider. Check out the status of the ProviderProfile resource by running the following command. You should see the Ready status set to False when you create the object for the first time. It will change to True once the dependency objects are created.

kubectl get providerprofile -n skycluster-system
# NAME                  REGION      READY
# savi-scinet-default   scinet      False

The operator creates a config map for each provider profile that constains offerings by the provider. You can verify the config map by running the following command:

# Change the label value to match your provider profile name
kubectl get configmap -n skycluster-system \
  -l skycluster.io/provider-profile=savi-scinet-default

Dependency Resources

The following dependency resources are needed to ensure ProviderProfile becomes ready and can be used:

Images

You need to configure the available images manually in skycluster-system namespace for on-premises providers. The following example shows how to configure images including ubuntu-20.04, ubuntu-22.04 and ubuntu-24.04 for the savi-scinet-default provider profile for the scinet region.

apiVersion: core.skycluster.io/v1alpha1
kind: Image
metadata:
  name: savi-scinet-default-images
  namespace: skycluster-system
spec:
  providerRef: savi-scinet-default
  # Must match the provider profile name in the Provider resource

  images:
    - zone: default
      nameLabel: ubuntu-20.04
      name: ubuntu-20.04 # Local identifier corresponding to the image
    - zone: default
      nameLabel: ubuntu-22.04
      name: ubuntu-22.04 # Local identifier corresponding to the image
    - zone: default
      nameLabel: ubuntu-24.04
      name: ubuntu-24.04 # Local identifier corresponding to the image

Check the status of Image resource by running the following command:

kubectl get images.core.skycluster.io -n skycluster-system
# NAME                         REGION      READY
# savi-scinet-default-images   scinet      True

Instance Type

To configure the instance types, you need to create an InstanceType resource in skycluster-system namespace. The following example shows how to introduce available instance types.

apiVersion: core.skycluster.io/v1alpha1
kind: InstanceType
metadata:
  name: savi-scinet-default-instance-types
  namespace: skycluster-system
spec:
  providerRef: savi-scinet-default
  # Must match the provider name in the Provider resource

  offerings:
    - zone: default
      zoneOfferings:
        - name: m1.small
          nameLabel: 1vCPU-2GB
          price: "0.0015"
          ram: 2GB
          vcpus: 1
        - name: n1.small
          nameLabel: 1vCPU-4GB
          vcpus: 1
          ram: 4GB
          price: "0.02"

Check the status of the InstanceType resource by running the following command:

kubectl get instancetype.core.skycluster.io -n skycluster-system
# NAME                                 REGION      READY
# savi-scinet-default-instance-types   scinet      True

Once all dependency resources are created and ready, the ProviderProfile status changes to Ready. At this point, you can use the provider profile to create resources in your cluster. To verify its status, run:

kubectl get providerprofile -n skycluster-system
# NAME                  REGION      READY
# savi-scinet-default   scinet      True

On-premises Custom Providers

On-premises providers can be registered similarly to cloud providers but you must also create DeviceNode resources in skycluster-system namespace to supply on-premises configuration such as the gateway node address, required keys, and edge-device details.

Provider Profiles

apiVersion: core.skycluster.io/v1alpha1
kind: ProviderProfile
metadata:
  name: savi-toronto-default
  namespace: skycluster-system
spec:
  platform: baremetal
  region: toronto
  regionAlias: toronto # Optional
  continent: north-america # Optional
  enabled: true
  zones:
    - name: default
      locationName: BahenBuilding # Optional
      defaultZone: true
      enabled: true
      type: edge

The baremetal type requires specifying gateway connection and access details, along with worker node data and their capabilities. You must configure this by creating DeviceNode resources:

Device Nodes

The DeviceNode API represents an edge device that can run workloads. A DeviceNode resource can be defined as either a gateway or a worker node by setting its type field. By default the gateway node does not run any workload. The DeviceNode resource are created in the skycluster-system namespace.

GatewayWorker

apiVersion: core.skycluster.io/v1alpha1
kind: DeviceNode
metadata:
  name: savi-toronto-gw
  namespace: skycluster-system
spec:
  providerRef: savi-toronto-default
  deviceSpec:
    type: gateway
    zone: default

    publicIp: x.y.z.w

    # by default the subnet mask is /24 for this network
    privateIp: 10.23.100.22

    auth:
      privateKeySecretRef:
        # secret containing the private SSH key, see below
        name: savi-toronto-edge-ssh-key
        key: privateKey
      username: ubuntu

NVIDIA Device Preparation

SkyCluster supports DeviceNode resources equipped with NVIDIA GPUs by installing a local K3s cluster and joining the devices as worker nodes. To enable GPU workloads, the devices must have the NVIDIA Container Runtime installed. Since installation steps vary depending on the device specifications (e.g., Jetson, desktop GPUs), you need to follow the official NVIDIA instructions to set up the toolkit. This toolkit allows containers to access the GPU resources on the Jetson device, enabling GPU-accelerated applications to run smoothly.

After setting up the toolkit, ensure that your containerized applications are configured to utilize the GPU resources effectively. You may need to specify the appropriate runtime and environment variables in your container configurations to leverage the GPU capabilities.
